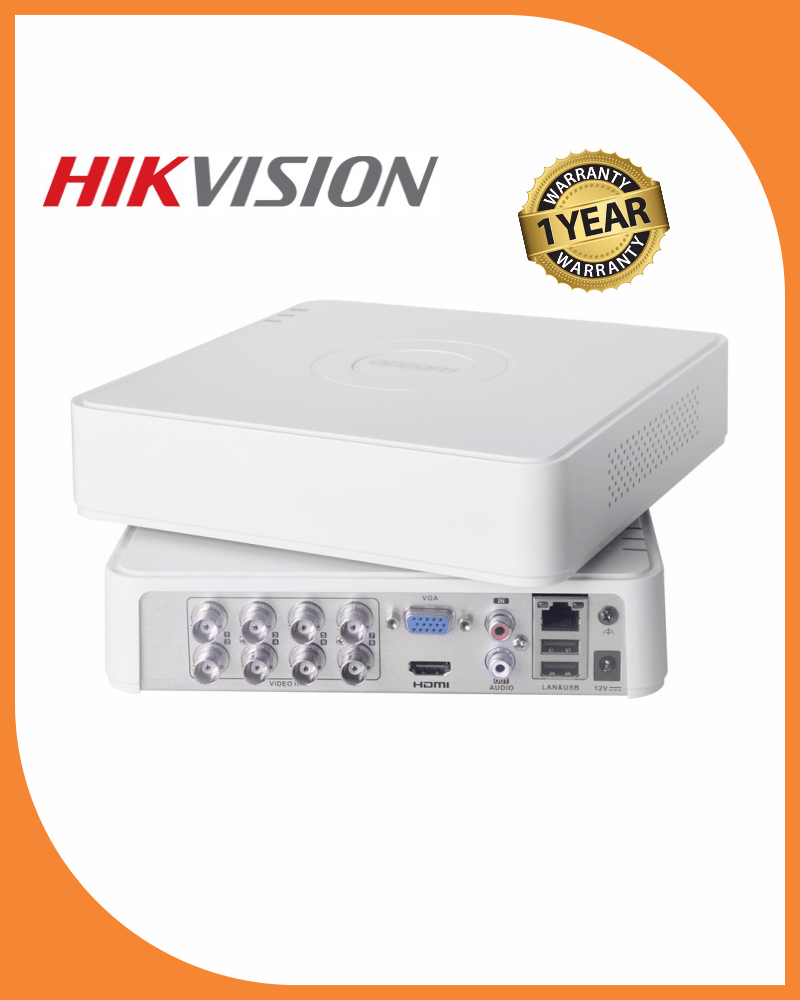

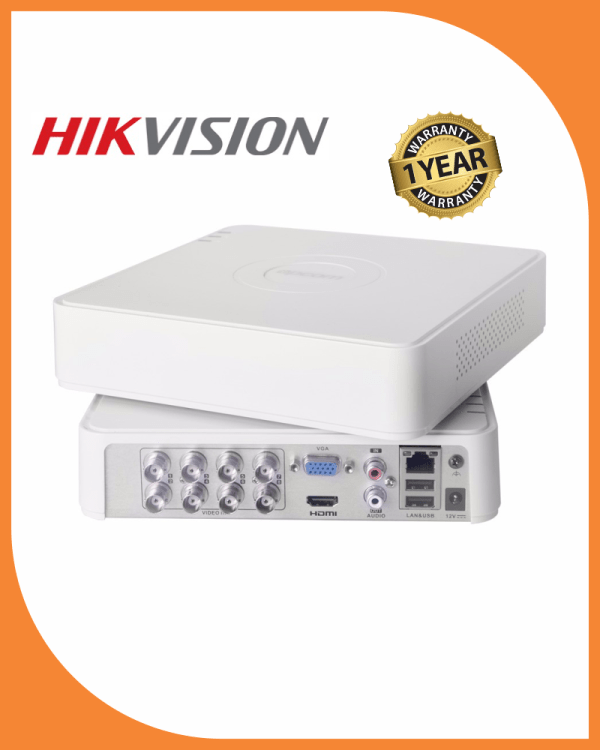

HIKVISION DS-7108HGHI-K1 8 Channel Original DVR

Description

• Motion Detection 2.0
• Human/Vehicle Analysis

  Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

  Quick search by object or event type is supported;

• Recording
• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution

  For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF

  For 720p stream access: 720p/WD1/4CIF/VGA/CIF

  For SD stream access: WD1/4CIF/VGA/CIF

• Frame Rate

  Main stream:

  For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps

  For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps

  For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

  Sub-stream:

  For 1080p and 720p stream access CIF/QVGA@15 fps

  For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)

• Video Bitrate32 Kbps to 4 Mbps
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bitrate64 Kbps

• Video And Audio
• IP Video Input

  2-ch (up to 10-ch)

  Up to 5 MP resolution

  Support H.265+/H.265/H.264+/H.264 IP cameras

• Analog Video Input

  8-ch

  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

• HDTVI Input1080p25, 1080p30, 720p25, 720p30
• AHD Input1080p25, 1080p30, 720p25, 720p30
• HDCVI Input1080p25, 1080p30, 720p25, 720p30
• CVBS InputSupport
• HDMI Output

  1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

• VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output ModeHDMI/VGA simultaneous output
• Audio Input

  1-ch RCA (2.0 Vp-p, 1 KΩ)

  8-ch via coaxial cable

• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way AudioReuse the first audio input
• Synchronous Playback8-ch

• Network
• Total Bandwidth72 Mbps
• Remote Connection64
• Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
• Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface

• Auxiliary Interface
• SATA1 SATA interface
• CapacityUp to 4 TB capacity for each disk
• USB InterfaceRear panel: 2 × USB 2.0
• Alarm In/OutN/A

• General
• Power Supply12 VDC, 1.5 A
• Consumption≤ 17 W (without HDD)
• Working Temperature-10 °C to 55 °C (14 °F to +31 °F)
• Working Humidity10% to 90%
• Dimension (W × D × H)200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
• Weight≤ 1 kg (without HDD, 2.2 lb.)

Detail is as HIKVISION Official website
